Colorful Crystal Pvc Braided Hose Pipe Tube Anti Abrasion For Transport Water - China

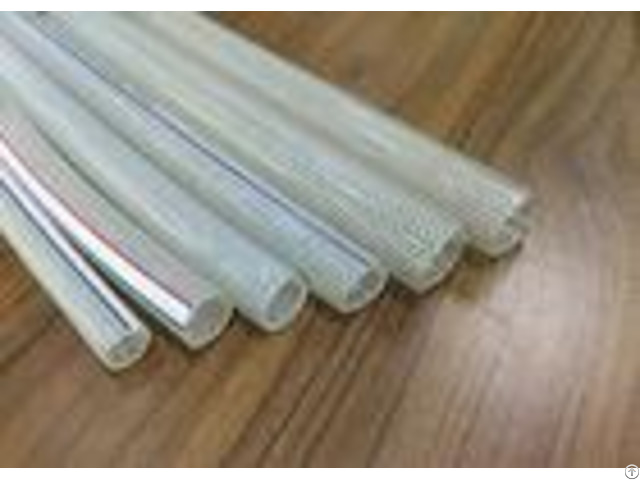

colorful crystal pvc nylon reinforced braided net hose pipe tube with ISO SGS The pvc braided hose pipe is made of PVC+polyester thread (new material cannot add calcium power), not knot after the knot hose delivery water, colors can be customized, the surface is not transparent, transparent or translucent, mainly used for conveying water, powder, grain and oil, etc.

in the industry, agriculture, irrigation and civil engineering.

It is the ideal alternative for rubber hoses and metal pipe.

- - - - Inner Diameter: | 4mm-76mm | Color | Clear, Blue, Orange, Yellow, Red etc.

| Quality Grade: | Food Grade, No Toxic Grade | length | 30m/50m/100m or customized | features | Durable, High Pressure, Weather Resistant | Application: | Plant, Farm, Construction, Mining And Family | - - - - production process 1 - Material 2 - Inner hose and middle polyester thread 3 - outer layer 4 - cooling 5 - Printing the label 6 - Hose Features 1 - Conform to ROHS environmental protection recognition.

2 - Excellent chemical property, pressure loss is small.

3 - Degree of hardness is stable, good antiknock characteristic.

4 - Excellent flexibility, the bevelling radius is small.

5 - Anti UV, anti-abrasion, anti-chemical, flexibility.

Application 1 - Transport water or other liquid, like gardening, cleaning cattle shed, parks community, irrigation flower garden and tree.

2 - n dustry robot, pneumatic tool.

3 - Vehicles service and house painting.

4 - Metal and electronic products protection coat.

Notes for storage: Get rid of any remaining from the hose after use.

Store the hose indoor or in a dark, well-ventilated place.

Enlarge the packing of the hose as much as possible.

Specification: - - - - Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 | 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 | 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 | 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 | 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 | 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 | 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 | 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 | 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 | 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 | 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 | 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 | 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 | 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 | 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 | 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 | - - - -

Company Contact:

• Posted By: QINGDAO EASTOP PLASTIC PRODUCT CO.,LTD

• Phone: 86-532-83860726

• Address: 2223 Building C, VANKE Center, Fuzhou Road, Qingdao, Shandong, China , Qingdao , Shandong , China

• Email:

• Website: https://www.pvcwaterhose.com

• Business Description: QINGDAO EASTOP PLASTIC PRODUCT CO., LTD is a professional manufacturer and exporter of PVC flexible hoses, with 14 years'experience.

  Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, etc.
