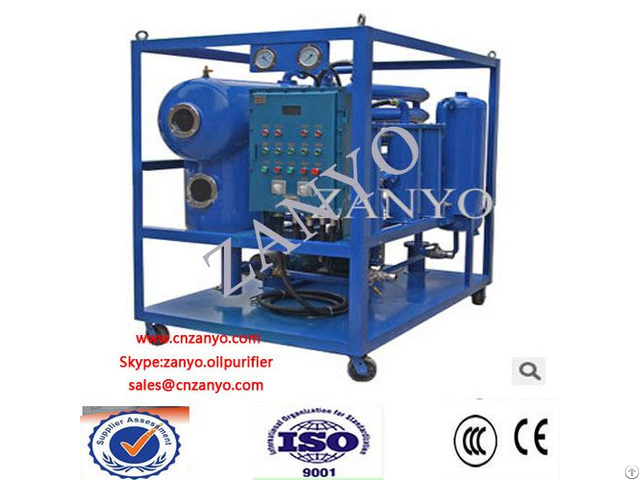

Zyd I 3000l H Double Stage Vacuum Insulation Oil Purifier - China

Application:

ZYD-I Double stages vacuum Insulation Oil purifier machine is used mainly applied in power plant, power station, transformer factory, electric power company, power transformation, metallurgy, petrifaction, machinery, traffic, railway and so on.

ZYD-I Insulation Oil purifier can remove particles, dewater, degas from the old and new insulating oil.

Especially for the 110KV-500KV large-scale transformer station, ZYD-I Insulation Oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil.

Function:

A: removing the moisture.

The final treated oil can achieve less than 3ppm

B: degassing.

The final treated oil can achieve less than 0.1%;

C: removing particles.

The final treated oil can achieve NAS2 Grade (Cleanliness Grade).

D: vacuum oil injecting

E: vacuum drying equipment for transformers

ZANYO outstanding features:

C.

Evaporation chamber is horizontal, and oil chamber is vertical, the two chambers are separated, therefore the maximum utilization of degassing chamber space.

D.

Unique technology: Atomizer is placed upside down, the oil droplet average diameter less than 30µm, to increase evaporation area and extend the degassing time.

Comparing to the one- vertical chamber machine, ZYD-I filtration system is 3 -fold and 5-fold quickly and effectively thank old machine.

Feature

I.

Double stage vacuum: high pumping speed, advanced dehydration and degasification system, Duplex-Stereo film evaporation technology, can remove particles, water, degas and hydrocarbon quickly and effectively, to improve the flash point and dielectric strength.

II.

Used for transformer installation and inspection, vacuum oil injecting and vacuum drying equipment for transformers.

III.

Precise oil filtration system, superior oil filter, Multi-stage precision filtration system, can remove mechanical particles effectively.

IV.

Advanced constant temperature control system, auto evel control system, auto defoaming system, pressure protecting system to make sure the high-performance of the machine

V.

Vacuum purification online work, unattended operation.

VI.

Humanization design, low noise, simple operation, long interval of maintenance time and low energy consumption.

VII.

Be equipped interlocked protecting system, oil discharge system, vacuum system, interlocked heating system, to make sure the machine run smoothly.

VIII.

Adopt short-circuit, Over voltage, Low voltage, Low battery voltage, Surge protection, loss phase protection

Optional Parts

PLC control system, dynamic display

Online moisture tester

Frequency changer

Flow meter

Structure: Mobile type, stationary type, trailer, enclosed doors, open type

Technical Parameters

Index name ZYD-I 30 50 80 100 125 150 200 250 300

Flow rate L/min 30 50 80 100 125 150 200 250 300

Ultimate vacuum Pa ≤5

Working vacuum pa ≤133

Working pressure Mpa ≤0.3

Working Temperature ℃ 30-80

Power supply 380V 50HZ 3Ph (According to customers’ power supply)

Continuous working time H ≥200

Working noise dB ≤65

Heating power KW 24 30 48 60 72 90 120 150 180

Total power KW 28.5 34.5 53 68 80 99 132 165 198

Pipe

diameter Inlet mm 32 32 45 45 45 58 58 75 75

Out mm 32 32 45 45 45 58 58 75 75

Machine

dimension L mm 1450 1450 1750 1750 1800 1950 1950 2050 2100

W mm 850 1250 1250 1450 1460 1550 1850 1850 1950

H mm 1400 1500 1500 1800 1850 1850 2150 2250 2280

The final treated oil index:

Item Guarantee indexes

Moisture content ≤3PPM

Impurity size ≤1 micron

Gas content ≤0.1%

Dielectric strength 70kv

Long-term quality warranty of 2 years.
